Mounting tabs

order/inquiry form

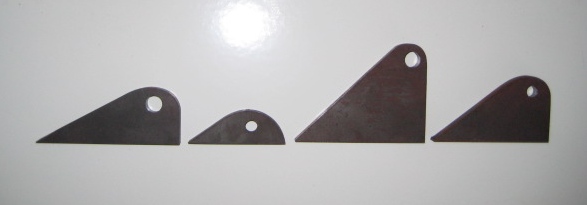

Mounting Tabs

Metric Rear Short Motor
1st from left
3/8" mild steel
approximate measure:
1.7" height
4.6" length
1/2" hole diameter

$  8.00/each


Metric Front Short Motor
2nd from left
3/8" mild steel
approximate measure:
1.0"  height
2.7" length
3/8" hole diameter

$  7.00/each


Metric Rear Tall Mount
3rd from left
3/8" mild steel
approximate measure:
3.0" height
4.1" length
1/2" hole diameter

$  10.00/each


Metric Front Tall Mount
4th from the left
3/8" mild steel
approximate measure:
2.1" height
3.8" length
3/8" hole diameter

$  8.00/each


SBF Motor Plates
PN# C1 SBFmotorplates
For Honda CB750 SOHC 69-76
3 piece set



$ 90.00/set

SBF Honda CB750 SOHC 69-76 motor plates
PN# C1 SBFmotorplates

Santee Swingarm Frame Motor Plates
for Honda CB750 1969-78
PN# C1 santeemtrplate
Replace motor plates for the early Santee swingarm frames

$ 48.00/pr.

Santee Rear Motor Mount Honda CB750 SOHC
C1 Santeemtrmnt

Forward Control Tabs
PN# C1 forward control tabs 2000+
3/8" plate steel
For use with 2000+ HD forward controls

$ 30.00/set

2000+ forward control mount tabs
PN# C1 forward control tabs 2000+

Forward Control Tabs
PN# C1 36-99fwdmnttabs
3/8" plate steel
Fits models 1984-1999
Harley Davidson FXS or
Softail applications

$ 30.00/set

HD forward control mount tabs for 36-99 BT
PN# C1 36-99fwdmnttabs

Forward Control Mount Brackets
PN# C1 fwdmntcb750/stk/c
application Honda CB750F/K 69-78
For both stock and custom frames
3/8 steel plate, stand up steel strong
Please specify frame application when ordering
Stock applicaton will bolt to the front frame mount and lower front motor mount
Custom application will mount to the upper front and lower front motor mounts

$ 20.00/each

forward control mount brackets for Honda CB750
PN# C1 fwdmtcb70/stk/c

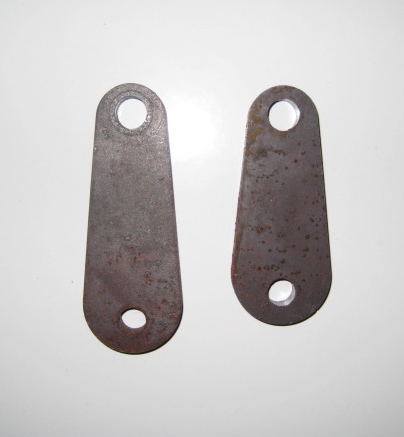

Metric Upper Rear Motor Long
1st from left
3/8" mild steel
4.3" length
1/2" top hole
7/16" bottom hole

$ 12.00/each


Metric Upper Rear Motor Short
2nd from left
3/8" mild steel
3.8" length
1/2" hole diameter top
7/16" hole diameter bottom

$ 10.00/each

Misc. Finger Mount Tab
1/4" mild steel
2 1/2" overall length
1" width
1/4" hole diameter

$  5.00/each


Kickstand Mount Tab
PN# Kickstand mount tab
requires kickstand for 1954-1984 Sportster Xl models
welds to 1 1/8" Dom

$ 40.00/each

Kick stand mount tab for custom frame applications coped for 1 1/8 tubing
PN# kickstand mount tab

Brake Caliper Anchor Mount Bracket
PN# C1 rear caliper anchor bracket
6" in length
3/8 mild steel
3" deep - can be trimmed to fit

$ 35.00/each

brake caliper anchor mount bracket
PN# C1 rear caliper anchor bracket

brake caliper mount bracket installed
PN# C1 rear caliper anchor bracket

Slotted Brake Mount Tab
PN# slotted brake anchor bracket
3/8 mild steel
for use with drum or disc brakes
3 1/2" long, 1 1/2" wide
3/8 wide slot, 2 3/4" long

$ 20.00/each

slotted brake anchor mount tab
PN# slotted brake anchor bracket

Sprung Seat Mounting Kit
Pn# Mu 27933
Universal Coped Mounting Bung
solo seat spring mount kit - includes 2 bungs, 2 clips, 2 washers - fit up to 1 1/4" - weld on



$ 15.99/kit

solo seat spring mount kit - includes 2 bungs, 2 clips, 2 washers - fit up to 1 1/4" - weld on
PN# MU 27933

Universal Mounting Bung
PN# C1 bung.25x.75
Steel mounting bung
3/4" tall
1/4" NC threaded

$ 4.00/each

Mounting bungs 3/4" steel
C1 bung.25x.75

Flush Tank Mount Kit
PN# C1 tankmounts
kit contains: 2 brackets and
2 rubber isolators
suggested retail $ 14.25

$ 12.99/kit

hidden tank mount tabs with rubbers
PN# C1 tankmount
