Kawasaki Custom Motorcycle Frames
** 4 cylinder metrics with dual downtubes are available in standard 130, 250, 300 & 330 widths -- dual downtube not
available in 200 width unless a jackshaft is used
|

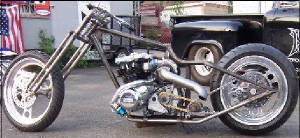

Kawasaki KZ1000 "Tribute" style frame
with it's design cues styled after the great builder Denver Mullins 5" forward 3" upstretch 53° rake Big twin neck Custom tube gusset Standard rear Vintage axle plates 5" ride height gallery link to more pics
|
|
Kawasaki KZ650
5" Forward in straight backbone
1" Up in rolled single curved downtube
41° rake
Standard rear drive - chain final
Honda neck
|
|
Kawasaki KZ1000
5" Forward in straight backbone
3" Up single rolled downtube
50° rake
250 Ultra wide drive - chain final
Jackshaft assembly
Big twin 1" neck
|
|
Kawasaki KZ750 Twin
6" Forward in straight backbone
6" Up single straight downtube
50° rake
300 Ultra wide drive - chain final
Jackshaft assembly
Big twin 1" neck
*1" axle plates
|
|
Kawasaki KZ1000 8" Forward in straight backbone
6" Up single rolled downtube 38° rake Big twin 1" neck Standard rear
Chain final
|
|
Kawasaki KZ1000 6" Forward in straight backbone 4" Up single straight
downtube 42° rake 300 Ultra wide drive - chain final Big twin 1" neck "Add-on" 1" axle plates - drop seat - jackshaft
|
|
Kawasaki KZ1000P - Police model engine
2" Forward in straight backbone
6" Up dual straight downtubes
38° rake
Standard rear
Big twin 1" neck
|
